Configurations & Accessories. Options and accessories to perfectly suit the space you are designing.
Wall Attached System (Forward Folding)
Wall attached systems are the most typical application of telescopic seating. Available in up to 30 rows, they open in the forward direction, (back to front), and utilize either wall or freestanding floor attachment. Compatible with manual or electric operation.
Reverse Fold System
Reverse Fold systems open opposite of wall attached systems. Utilizing a freestanding floor attachment on the 1st row, they open front to back, allowing the space behind the bleacher to be used. Commonly used on mezzanines and balconies, reverse folds are available in up to 20 rows (consult if more are required), and are compatible with manual or electric operation.
Portable System
Portable systems are designed so that they may be used in multiple areas within a given space. Available in up to 8 rows (consult if more are required), they consist of freestanding single sections. Hydraulic transporters are provided to lift and move the bleachers to various spectator or storage areas. Available with manual operation only, check floor conditions and consult factory regarding point loads.
*11 5/8” rise required*

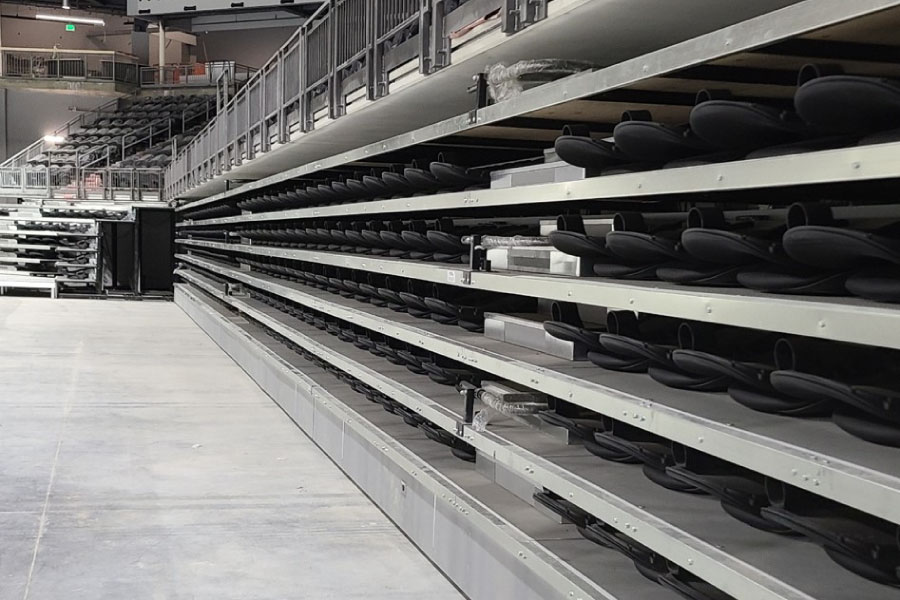

Recessed System
Recessed systems are designed to require minimal clearance to fit under balcony or mezzanine overhangs. Available in up to 30 rows, they can be customized to fit under and within areas such as pocket walls, or under balconies and mezzanines which transition to other levels. Compatible with manual and electric operation.
Wall Attached
Reverse Fold
Portable System
Recessed System
Custom Seating Configurations

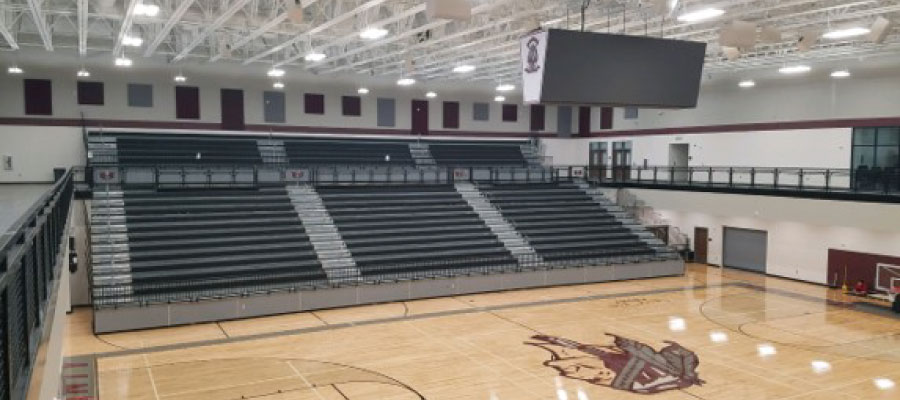

Full Section 1st Row Truncations
Available in permanent and recoverable (electric only), configurations, customize 1st row sections from 14’-20’ in length. Full section truncations offer flexibility of use and ease of setup.

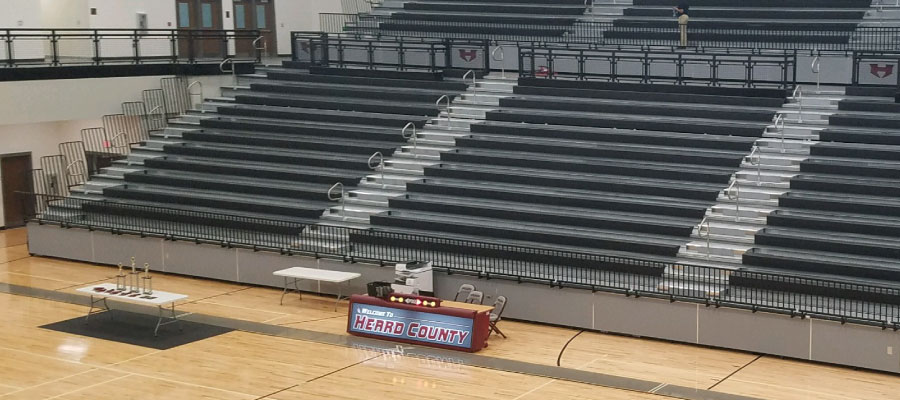

Elevated 1st Row
Elevating the 1st row improves sightlines and can help transitions to high mezzanines or balconies.
Adding front rails to elevated 1st rows can help direct foot traffic and keep spectators safe.
Extended Front & Rear Walkways
Extended spacing in the 1st or last row helps with foot traffic in these areas.
Adding front rails to extended 1st rows can help direct foot traffic and keep spectators safe.
ADA Configurations
Fixed ADA Cut-Outs
Non-recoverable ADA’s are available in 1 or 2 row depth options. Can be placed at the ends of any section for a convenient and economical solution to your ADA requirements with no additional setup.
Recoverable ADA Cut-Outs
Recoverable units allow you to meet your ADA requirements with out losing any seating. They can be easily locked to the 1st row when not in use. Available at 1 row of depth, they can be placed at the ends of sections and used as needed.
Accessories

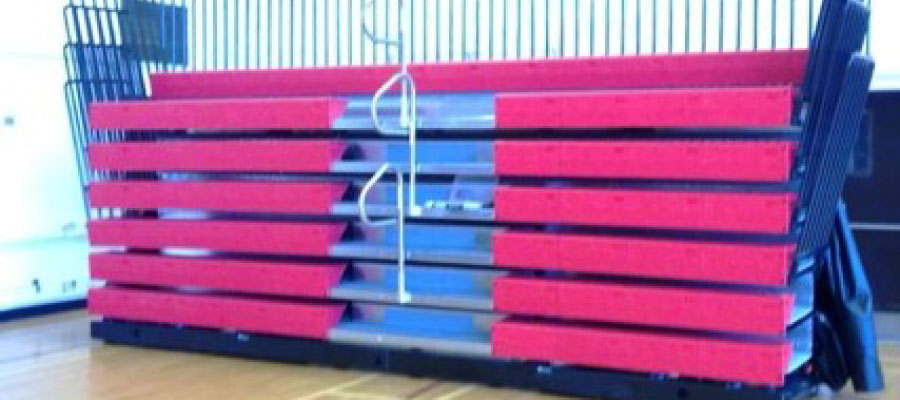

Self Storing End Rails & Back Rails
Eliminate storage needs with the self storing, “Insta-rails”. Adds 12” to each end of the bank length. Back rails are added to reverse fold and portable configurations to keep spectators safe, where wall attachments are not available.
Vinyl End Closures (VEC)
Keeps unwanted materials from entering the sides of the bleacher, in both extended and retracted positions. Made from heavy duty vinyl, the VEC’s fold with the bleacher as it moves.
End & Rear Panels
End panels are mounted to the back wall and protect against materials getting behind bleacher while in the closed position. Rear panels, (ideal for portable or reverse fold setups), protect from unwanted materials from the back of bleacher banks.
Stainless Steel P-Rails
Our stainless steel P-rails are durable and maintenance free. They quickly and easily rotate 90⁰ for when the bleacher is in the stored position. (Required in the US)
Scorers Tables
Our 96” x 15” scorers tables mount directly to your bleacher for ease of use. Collapsible legs allow it to be stored on the bleacher while in the closed position.
Mark II Portable Tractors
Add the ease of electric operation to manually operated bleachers. Ideal for medium sized bleachers up to 13 rows.
Front & Intermediate Steps
Available in customized heights and widths to suit your bleacher. Front steps are removable and can be stored on the 1st row when the bleacher is not in use and in the closed position. Required on all US projects & projects over 10 ¼” rise in Canada.
*Front step adds 14” to overall bleacher extended width.
Seat Numbers & Aisle Letters
Our CSM and end caps are molded with 2 ½” x 1 ½” recessed pockets to allow for seat number and aisle letter decals to be applied directly to the seat.
*Coming soon – 3”x 3” recessed pocket on endcaps to allow for decals or GameDay GraFX
Media Platforms
Our custom made media platforms come with standard dimensions (custom upon request), of 4’ x 8’. They offer a bird’s eye view and are attached directly to the bleacher and require zero additional setup once attached.

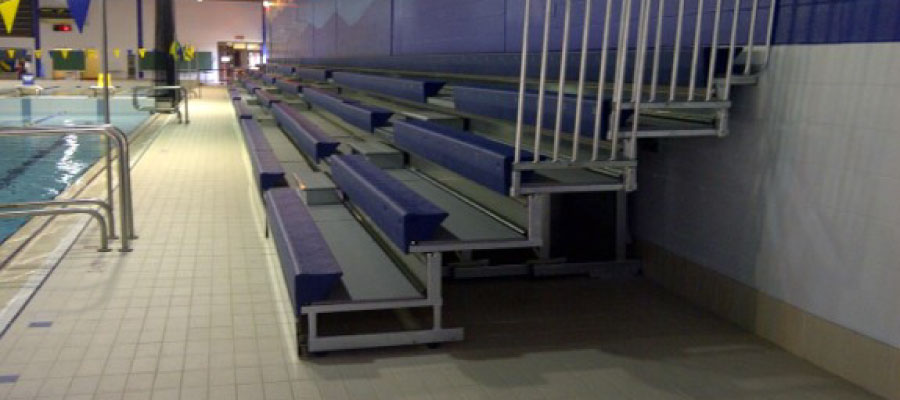

Galvanized Pool Bleachers
For bleachers that are located in high humidity areas, we offer options to make your bleacher last. Galvanized understructure, and stainless steel hardware will keep your bleacher running smoothly in areas where rust and corrosion can cause concern.
Ask us about our different galvanizing options to fully protect your bleacher.
Wood Back Rests
Available with both our 10” and 12” CSM options. Add our folding backrests to allow your spectators to sit back and relax.
*Requires min. 30” deck spacing and 10 ¼” rise
